Oil/Greese Hose Reels Z-series

  • Hose reels with a oil / grease hose.
  • Heavy duty single arm reel made with heavy gauge steel.
ZLO-365D U
Product
Z-series Oil Hose Reel　9.5mm X 15.0M
Model
ZLO-315
Features
  • Single arm heavy duty reel for industrial applications.
  • Reels come with Inlet hose.
  • Guide arms adjust to wall, floor and overhead positions.
Other hose sizes
ZLO-320L Z-series Oil Hose Reel
9.5mm X 20.0M
Model：ZLO-320
   　
ZLO-320L Z-series Oil Hose Reel
12.7mm X 10.0M
Model：ZLO-410
 ZLO-320L Z-series Oil Hose Reel
12.7mm X 15.0M
Model：ZLO-415

Special Order Color
Z-Series Water Hose Reels S Size LightGray Light Gray
＊ Special order only
 Z-Series Air Hose Reels L Size Orange Light Gray
＊ Special order only

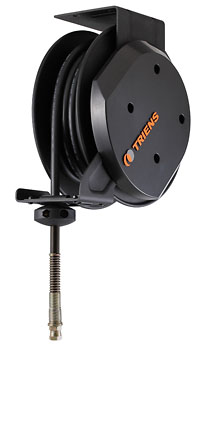

ZSO-330D U
Product
Z-series Oil Hose Reel　9.5 X 8.0M
Model
ZSO-308
Features
  • Single arm heavy duty reel for industrial applications.
  • Reels come with Inlet hose.
  • Guide arms adjust to wall, floor and overhead positions.

Special Order Color
Z-Series Water Hose Reels S Size LightGray Light Gray
＊ Special order only
 Z-Series Air Hose Reels L Size Orange Light Gray
＊ Special order only


ZLG-350D U
Product
Z-series Grease Hose Reel　6.2mm X 15.0M
Model
ZLG-215D
Features
  • Single arm heavy duty reel for industrial applications.
  • Reels come with Inlet hose.
  • Guide arms adjust to wall, floor and overhead positions.
Other hose sizes
ZLO-320L Z-series Grease Hose Reel
6.2mm X 20.0M
Model：ZLG-220D
 ZLO-320L Z-series Grease Hose Reel
9.3mm X 15.0M
Model：ZLG-315D

Special Order Color
Z-Series Water Hose Reels S Size LightGray Light Gray
＊ Special order only
 Z-Series Air Hose Reels L Size Orange Light Gray
＊ Special order only
ZSG-210L
Product
Z-series Grease Hose Reel　6.2mm X 8.0M
Model
ZSG-208
Features
  • Single arm heavy duty reel for industrial applications.
  • Reels come with Inlet hose.
  • Guide arms adjust to wall, floor and overhead positions.
Special Order Color
Z-Series Water Hose Reels S Size LightGray Light Gray
＊ Special order only
 Z-Series Air Hose Reels L Size Orange Light Gray
＊ Special order only

Specifications

(Large)
Model Hose Maximum
Working
Pressure
(MPa)		 Inlet Hose Dimensions
(mm)		 Body
Weight
(kg)
Hose
materials		 Connection Inner Diameter
(mm)		 Length
(m)		 Connection Length
(m)		 A B C
ZLO-315 1 braid Union G 3/8 Female 9.5 15.0 7.0 Union G 3/8 Female 1.0 540 516 205 26.0
ZLO-320 1 braid Union G 3/8 Female 9.5 20.0 7.0 Union G 3/8 Female 1.0 540 516 205 28.3
ZLO-410 1 braid Union G 1/2 Female 12.7 10.0 7.0 Union G 1/2 Female 1.0 540 516 205 25.4
ZLO-415 1 braid Union G 1/2 Female 12.7 15.0 7.0 Union G 1/2 Female 1.0 540 516 205 27.6
ZLG-215 2 braid Union G 1/4 Female 6.2 15.0 28.0 Union G 1/4 Female 1.0 540 516 205 26.4
ZLG-220 2 braid Union G 1/4 Female 6.2 20.0 28.0 Union G 1/4 Female 1.0 540 516 205 28.4
ZLG-315 2 braid Union G 3/8 Female 9.3 15.0 28.0 Union G 3/8 Female 1.0 540 516 205 29.4




(Small)
Model Hose Maximum
Working
Pressure
(MPa)		 Inlet Hose Dimensions
(mm)		 Body
Weight
(kg)
Hose
materials		 Connection Inner Diameter
(mm)		 Length
(m)		 Connection Length
(m)		 A B C
ZSO-308 1 braid Union G 3/8 Female 9.5 8.0 7.0 Union G 3/8 Female 1.0 392 380 202 18.0
ZSG-208 2 braid Union G 1/4 Female 6.2 8.0 28.0 Union G 1/4 Female 1.0 392 380 202 18.0




Installation Positioning

Dimensions
Installation Positioning Dimensions



Notes:

• Read the manual thoroughly and use it properly.

• The actual product color may differ.

• Product specifications are subject to change for improvements without notice.

• These products are for indoor use only.
