Oil/Greese Hose Reels Enclosed

  • Hose reels with a oil / grease hose.
  • Heavy duty hose reel covering with metal cover for longer product life.
ESO-410
Product
Enclosed Oil Hose Reel　12.7mm X 10M
Model
ESO-410
Features
  • The cover protects all working parts from contaminants.
  • Reels come with Inlet hose.
  • Guide arms adjust to wall, floor and overhead positions.
Other hose sizes
ESO-310 Enclosed oil Hose Reel
9.5mm X 10M
Model：ESO-310



ELO-415 E
Product
Enclosed Oil Hose Reel　9.5mm X 15.0M
Model
ELO-315
Features
  • The cover protects all working parts from contaminants.
  • Reels come with Inlet hose.
  • Guide arms adjust to wall, floor and overhead positions.
Other hose sizes
ELO-420 E Enclosed Oil Hose Reel
9.5mm X 20.0M
Model：ELO-320

ELO-420 E Enclosed Oil Hose Reel
12.7mm X 10.0M
Model：ELO-410
 ELO-420 E Enclosed Oil Hose Reel
12.7mm X 20.0M
Model：ELO-420

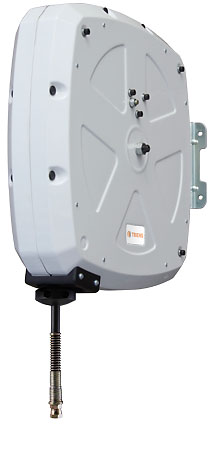

ESG-210
Product
Enclosed Grease Hose Reel　6.2mm X 10M
Model
ESG-210
Features
  • The cover protects all working parts from contaminants.
  • Reels come with Inlet hose.
  • Guide arms adjust to wall, floor and overhead positions.
Other hose sizes
ESG-310 Enclosed Grease Hose Reel
9.3mm X 10M
Model：ESG-310



ELG-220 E
Product
Enclosed Grease Hose Reel　6.2mm X 15.0M
Model
ELG-215
Features
  • The cover protects all working parts from contaminants.
  • Reels come with Inlet hose.
  • Guide arms adjust to wall, floor and overhead positions.
Other hose sizes
ELG-215 E Enclosed Grease Hose Reel
6.2mm X 20.0M
Model：ELG-220
 ELG-215 E Enclosed Grease Hose Reel
9.3mm X 15.0M
Model：ELG-315




Specifications

Enclosed (Small Frame)
Model Hose Maximum Working
Pressure
(MPa)		 Primary Joint Hose Main Unit Size
(mm)		 Body
Weight
(kg)
Hose
materials		 Connection Inner Diameter
(mm)		 Length
(m)		 Connection Length
(m)		 A B C
ESO-310 1 braid Union G 3/8 Female 9.5 10.0 7.0 Union G 3/8 Female 1.0 508 488 206 19.6
ESO-410 1 braid Union G 1/2 Female 12.7 10.0 7.0 Union G 1/2 Female 1.0 508 488 206 20.7
ESG-210 2 braid Union G 1/4 Female 6.2 10.0 28.0 Union G 1/4 Female 1.0 508 488 206 19.7
ESG-310 2 braid Union G 3/8 Female 9.3 10.0 28.0 Union G 3/8 Female 1.0 508 488 206 21.6




Enclosed (Large Frame)
Model Hose Maximum Working
Pressure
(MPa)		 Primary Joint Hose Main Unit Size
(mm)		 Body
Weight
(kg)
Hose
materials		 Connection Inner Diameter
(mm)		 Length
(m)		 Connection Length
(m)		 A B C
ELO-315 1 braid Union G 3/8 Female 9.5 15.0 7.0 Union G 3/8 Female 1.0 595 575 235 28.0
ELO-320 1 braid Union G 3/8 Female 9.5 20.0 7.0 Union G 3/8 Female 1.0 595 575 235 29.2
ELO-410 1 braid Union G 1/2 Female 12.7 10.0 7.0 Union G 1/2 Female 1.0 595 575 235 29.4
ELO-415 1 braid Union G 1/2 Female 12.7 15.0 7.0 Union G 1/2 Female 1.0 595 575 235 31.1
ELG-215 2 braid Union G 1/4 Female 6.2 15.0 28.0 Union G 1/4 Female 1.0 595 575 235 26.4
ELG-220 2 braid Union G 1/4 Female 6.2 20.0 28.0 Union G 1/4 Female 1.0 595 575 235 28.4
ELG-315 2 braid Union G 3/8 Female 9.3 15.0 28.0 Union G 3/8 Female 1.0 595 575 235 29.1




Installation Positioning

Dimensions
Installation Positioning Dimensions

Notes:

• Read the manual thoroughly and use it properly.

• The actual product color may differ.

• Product specifications are subject to change for improvements without notice.

• These products are for indoor use only.
