Oil/Grease Hose Reels G-series
- Hose reels with a oil / grease hose.
- Dual pedestal heavy duty reels for industrial applications.
- Product

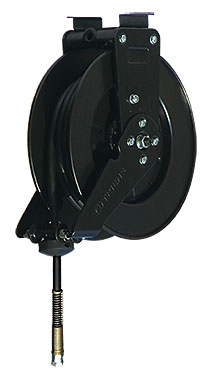

- G-series Oil Hose Reel 12.7mm X 10.0M
- Model
- GS I O-410
- Features
-
- Dual pedestal increases arm support and reduces body vibration. perfect for heavy duty applications.
- Reels come with Inlet hose and Slide-in mounting bracket for ease of installation.
- Guide arms adjust to wall, floor and overhead positions.
 |
G-series Oil Hose Reel Model：GS I O-310 |
- Product
- G-series Oil Hose Reel 12.7mm X 15.0M
- Model
- GM I O-415
- Features
-
- Dual pedestal increases arm support and reduces body vibration. perfect for heavy duty applications.
- Reels come with Inlet hose and Slide-in mounting bracket for ease of installation.
- Guide arms adjust to wall, floor and overhead positions.
|
G-series Oil Hose Reel Model：GM I O-320 |
|
G-series Oil Hose Reel Model：GM I O-315 |
- Product
- G-series Oil Hose Reel 12.7mm X 25M
- Model
- GL I O-425
- Features
-
- Dual pedestal increases arm support and reduces body vibration. perfect for heavy duty applications.
- Reels come with Inlet hose and Slide-in mounting bracket for ease of installation.
- Guide arms adjust to wall, floor and overhead positions.
|
G-series Oil Hose Reel Model：GL I O-420 |
|
G-series Oil Hose Reel Model：GL I O-610 |
- Product
- G-series Grease Hose Reel 9.3mm X 10.0M
- Model
- GS I G-310
- Features
-
- Dual pedestal increases arm support and reduces body vibration. perfect for heavy duty applications.
- Reels come with Inlet hose and Slide-in mounting bracket for ease of installation.
- Guide arms adjust to wall, floor and overhead positions.
|
G-series Grease Hose Reel Model：GS I G-210 |
- Product
- G-series Grease Hose Reel 9.3mm X 15.0M
- Model
- GM I G-315
- Features
-
- Dual pedestal increases arm support and reduces body vibration. perfect for heavy duty applications.
- Reels come with Inlet hose and Slide-in mounting bracket for ease of installation.
- Guide arms adjust to wall, floor and overhead positions.
|
G-series Grease Hose Reel Model：GM I G-220 |
|
G-series Grease Hose Reel Model：GM I G-215 |
Specifications
| Model | Hose | Maximum Working Pressure (MPa) |
Inlet Hose | Dimensions (mm) |
Body Weight (kg) |
||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Hose materials |
Connection | Inner Diameter (mm) |
Length (m) |
Connection | Length (m) |
A | B | C | |||
| GSIO-310 | 1braid | Union G 3/8 Female |
9.5 | 10.0 | 7.0 | Union G 3/8 Female |
1.0 | 461 | 447 | 245 | 15.7 |
| GSIO-410 | 1braid | Union G 1/2 Female |
12.7 | 10.0 | 7.0 | Union G 1/2 Female |
1.0 | 461 | 447 | 245 | 16.8 |
| GSIG-210 | 2 braid | Union G 1/4 Female |
6.2 | 10.0 | 28.0 | Union G 1/4 Female |
1.0 | 461 | 447 | 245 | 15.8 |
| GSIG-310 | 2 braid | Union G 3/8 Female |
9.3 | 10.0 | 28.0 | Union G 3/8 Female |
1.0 | 461 | 447 | 245 | 17.7 |
| Model | Hose | Maximum Working Pressure (MPa) |
Inlet Hose | Dimensions (mm) |
Body Weight (kg) |
||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Hose materials |
Connection | Inner Diameter (mm) |
Length (m) |
Connection | Length (m) |
A | B | C | |||
| GMIO-320 | 1 braid | Union G 3/8 Female |
9.5 | 20.0 | 7.0 | Union G 3/8 Female |
1.0 | 566 | 551 | 245 | 22.4 |
| GMIO-315 | 1 braid | Union G 3/8 Female |
9.5 | 15.0 | 7.0 | Union G 3/8 Female |
1.0 | 566 | 551 | 245 | 20.8 |
| GMIO-415 | 1 braid | Union G 1/2 Female |
12.7 | 15.0 | 7.0 | Union G 1/2 Female |
1.0 | 566 | 551 | 245 | 32.0 |
| GMIG-220 | 2 braid | Union G 1/4 Female |
6.2 | 20.0 | 28.0 | Union G 1/4 Female |
1.0 | 566 | 551 | 245 | 22.5 |
| GMIG-215 | 2 braid | Union G 1/4 Female |
6.2 | 15.0 | 28.0 | Union G 1/4 Female |
1.0 | 566 | 551 | 245 | 20.8 |
| GMIG-315 | 2 braid | Union G 3/8 Female |
9.3 | 15.0 | 28.0 | Union G 3/8 Female |
1.0 | 566 | 551 | 245 | 23.8 |
| Model | Hose | Maximum Working Pressure (MPa) |
Inlet Hose | Dimensions (mm) |
Body Weight (kg) |
||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Hose materials |
Connection | Inner Diameter (mm) |
Length (m) |
Connection | Length (m) |
A | B | C | |||
| GLIO-425 | 1 braid | Union G 1/2 Female |
12.7 | 25.0 | 7.0 | Union G 1/2 Female |
1.0 | 666 | 650 | 275 | 38.4 |
| GLIO-420 | 1 braid | Union G 1/2 Female |
12.7 | 20.0 | 7.0 | Union G 1/2 Female |
1.0 | 666 | 650 | 275 | 36.2 |
| GLIO-610 | 1 braid | Union G 3/4 Female |
19.0 | 10.0 | 7.0 | Union G 3/4 Female |
1.0 | 666 | 650 | 275 | 36.7 |
Installation Positioning |
Dimensions |
 |
 |
Notes:
• Read the manual thoroughly and use it properly.
• The actual product color may differ.
• Product specifications are subject to change for improvements without notice.
• These products are for indoor use only.
