Water Hose Reels G-series
- Hose reels with a water hose.
- Dual pedestal heavy duty reels for industrial applications.
- Product

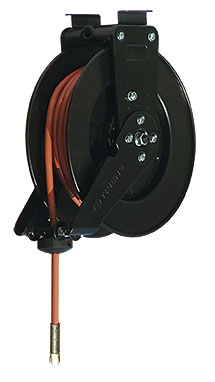

- G-series Water Hose Reel 8.0mm X 15M
- Model
- GS I W-315
- Features
-
- Dual pedestal increases arm support and reduces body vibration. perfect for heavy duty applications.
- Reels come with Inlet hose and Slide-in mounting bracket for ease of installation.
- Guide arms adjust to wall, floor and overhead positions.
 |
G-series Water Hose Reel Model：GS I W-410 |
- Product
- G-series Water Reel 8.0mm X 30M
- Model
- GM I W-330
- Features
-
- Dual pedestal increases arm support and reduces body vibration. perfect for heavy duty applications.
- Reels come with Inlet hose and Slide-in mounting bracket for ease of installation.
- Guide arms adjust to wall, floor and overhead positions.
|
G-series Water Reel Model：GM I W-325 |
|
G-series Water Reel Model：GM I W-320 |
|
G-series Water Reel Model：GM I W-420 |
|
G-series Water Reel Model：GM I W-415 |
- Product
- G-series Water Reel 13.0mm X 35M
- Model
- GL I W-435
- Features
-
- Dual pedestal increases arm support and reduces body vibration. perfect for heavy duty applications.
- Reels come with Inlet hose and Slide-in mounting bracket for ease of installation.
- Guide arms adjust to wall, floor and overhead positions.
|
G-series Water Reel Model：GL I W-430 |
|
G-series Water Reel Model：GL I W-425 |
Specifications
| Model | Hose | Maximum Working Pressure (MPa) |
Inlet Hose | Dimensions (mm) |
Body Weight (kg) |
||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Hose materials |
Connection | Inner Diameter (mm) |
Length (m) |
Connection | Length (m) |
A | B | C | |||
| GSIW-315 | PVC | Union G 3/8 Female |
8.0 | 15.0 | 0.5 | Union G 3/8 Female |
1.0 | 461 | 447 | 245 | 13.5 |
| GSIW-410 | PVC | Union G 1/2 Female |
13.0 | 10.0 | 0.5 | Union G 1/2 Female |
1.0 | 461 | 447 | 245 | 14.9 |
| Model | Hose | Maximum Working Pressure (MPa) |
Inlet Hose | Dimensions (mm) |
Body Weight (kg) |
||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Hose materials |
Connection | Inner Diameter (mm) |
Length (m) |
Connection | Length (m) |
A | B | C | |||
| GMIW-330 | PVC | Union G 3/8 Female |
8.0 | 30.0 | 0.5 | Union G 3/8 Female |
1.0 | 566 | 551 | 245 | 17.9 |
| GMIW-325 | PVC | Union G 3/8 Female |
8.0 | 25.0 | 0.5 | Union G 3/8 Female |
1.0 | 566 | 551 | 245 | 17.4 |
| GMIW-320 | PVC | Union G 3/8 Female |
8.0 | 20.0 | 0.5 | Union G 3/8 Female |
1.0 | 566 | 551 | 245 | 16.9 |
| GMIW-420 | PVC | Union G 1/2 Female |
13.0 | 20.0 | 0.5 | Union G 1/2 Female |
1.0 | 566 | 551 | 245 | 18.8 |
| GMIW-415 | PVC | Union G 1/2 Female |
13.0 | 15.0 | 0.5 | Union G 1/2 Female |
1.0 | 566 | 551 | 245 | 17.8 |
| Model | Hose | Maximum Working Pressure (MPa) |
Inlet Hose | Dimensions (mm) |
Body Weight (kg) |
||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Hose materials |
Connection | Inner Diameter (mm) |
Length (m) |
Connection | Length (m) |
A | B | C | |||
| GLIW-435 | PVC | Union G 1/2 Female |
13.0 | 35.0 | 0.5 | Union G 1/2 Female |
1.0 | 666 | 650 | 275 | 33.7 |
| GLIW-430 | PVC | Union G 1/2 Female |
13.0 | 30.0 | 0.5 | Union G 1/2 Female |
1.0 | 666 | 650 | 275 | 32.7 |
| GLIW-425 | PVC | Union G 1/2 Female |
13.0 | 25.0 | 0.5 | Union G 1/2 Female |
1.0 | 666 | 650 | 275 | 31.6 |
Installation Positioning |
Dimensions |
 |
 |
Notes:
• Read the manual thoroughly and use it properly.
• The actual product color may differ.
• Product specifications are subject to change for improvements without notice.
• These products are for indoor use only.
